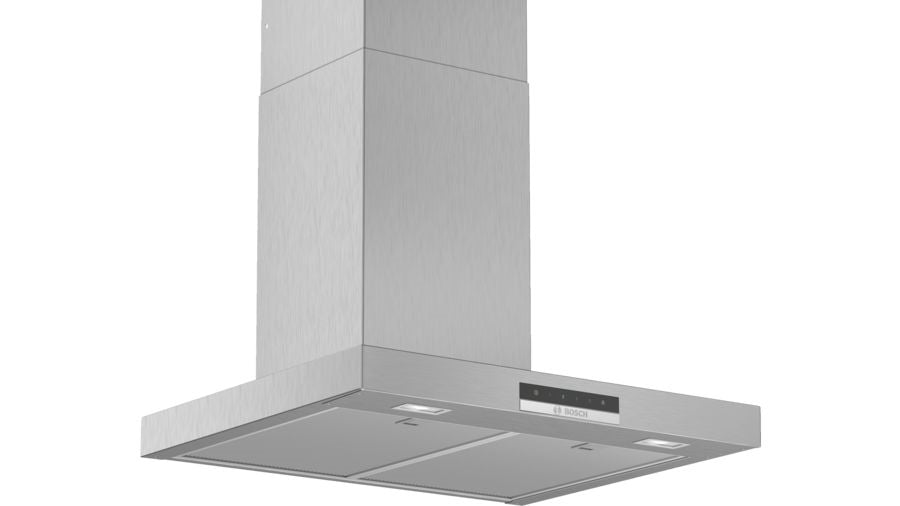

Bosch DWB66DM50B Chimney extractor hood Brushed steel

Product features

Key Performance Features:

Energy Efficiency Class: A (At A Range Of Energy Efficiency Classes From A++ To E)*

Extraction Rate According To En 61591 15 Cm:

Max. Normal Use 360 M3/H

Intensive 580 M3/H

Noise Max. Normal Level: 60 Db*

Features

Touchcontrol With Electronic Display

Electronic Display

3 Power Levels And Intensive Setting

2 X 1.5w LED Light

Colour Temperature: 3500 K

Automatic Intensive Revert (6mins)

2 Removable Metal Grease Filter Cassettes

Designed For Wall Mounted Installation

Design

Brushed Steel

Box

Design

Chimney Extractor Hood

Touchcontrol

Electronic Control

Performance/technical information

Suitable For Ducted Or Recirculating Operation

For Recirculated Extraction Recirculating Kit Or Cleanair Recirculating Kit (Accessory) Needed

Max. Extraction Rate: 580 M3/H

Extraction Rate According To En 61591 15 Cm:

Max. Normal Use 360 M3/H

Intensive 580 M3/H

Extraction Rate In Recirculation Mode:

Max. Normal Use: 270 M3/H

Intensive: 340 M3/H

Noise Max. Normal Level: 60 Db*

Noise Level According To En 60704-3 And En 60704-2-13 Exhaust Air:

Max. Normal Use: 60 Db(A) Re 1 Pw (48 Db(A) Re 20 Upa Sound Pressure)

Intensive: 69 Db(A) Re 1 Pw (57 Db(A) Re 20 Upa Sound Pressure)

Noise Levels In Recirculation Mode:

Max. Normal Use: 71 Db(A) Re 1 Pw (59 Db(A) Re 20 Upa Sound Pressure)

Intensive: 75 Db(A) Re 1 Pw (63 Db(A) Re 20 Upa Sound Pressure)

Power Rating: 220 W

Light Intensity: 250 Lux

Colour Temperature: 3500 K

Electrical Cable Length 1.3 M

Diameter Pipe150 Mm (120 Mm Enclosed)

Dimensions Exhaust Air (Hxwxd): 635-965 X 600 X 500 Mm

Dimensions Recirculating (Hxwxd): 635-1075 X 600 X 500 Mm

Dimensions Recirculating With Cleanair Module (Hxwxd):

703 X 600 X 500 Mm - Mounting With Outer Chimney

833-1163 X 600 X 500 Mm - Mounting With Telescopic Chimney

Energy Efficiency Class: A (At A Range Of Energy Efficiency Classes From A++ To E)*

Blower Efficiency Class: A*

Lighting Efficiency Class: A*

Grease Filtering Efficiency Class: C*

Average Energy Consumption: 44 Kwh/Year

Accessories

Recirculating Kit
